Hurricane Rated

Florida Hurricane Impact Rated Steel Doors & Windows

In our commitment to provide products that stand up to the toughest building standards we offer a variety of door configurations that have been engineered, tested and certified to meet the new 2023 Florida Impact Building codes. See our NOA’s online at:

www.floridabuilding.org FL #11107
(Custom oversized steel doors and window units can be built with Site-Specific Hurricane Impact Approvals)

View Our Florida Approvals:

Florida Building Code Online,   Revision March 2023

Equivalence of Product Standards

FPAS

HVHZ-FPAS


Hurricane Rated Steel windows

Call a Cantera Doors representative for more information on product availability in your area. We are proud to manufacture hurricane rated steel doors and windows that meet and exceed industry standards.

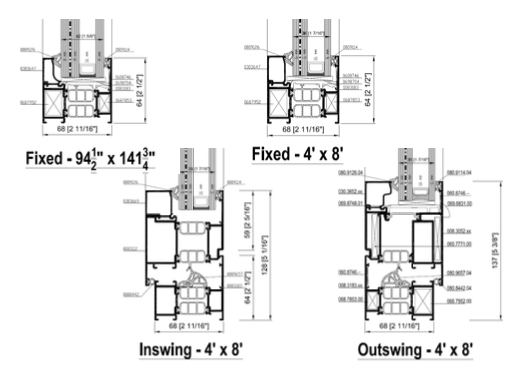

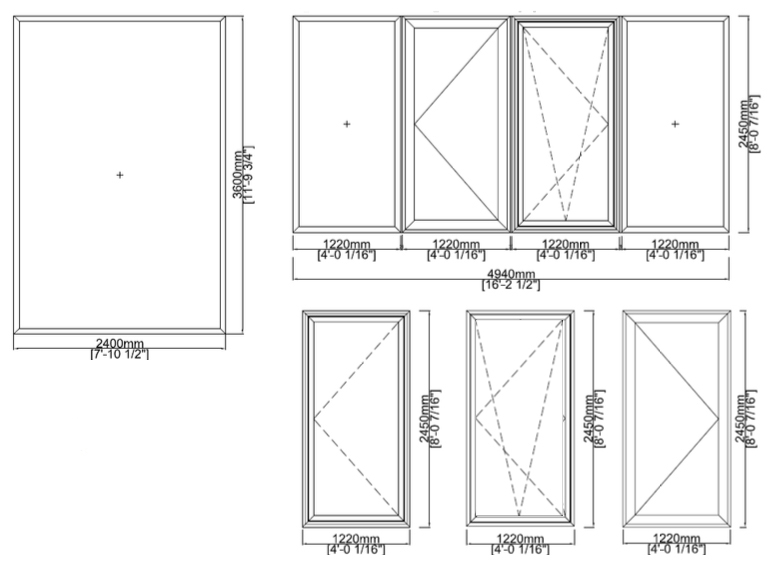

CS77 - Hurricane Solutions

4’ x 8’ [1220mm x 2450mm] fixed & operable [inswing & outswing], as well as 94½” x 141¾” [2400mm x 3600mm] fixed.
Tested to ASTM 1886/1996 & TAS 201, 202 & 203
  • Water pressure: 12 psf (580Pa)
  • Design pressure: 65 psf (3120 Pa)
  • Structural pressure: 98 psf (4680 Pa)
  • Missile: Large missile D

Couplers [Field Mulls] also approved

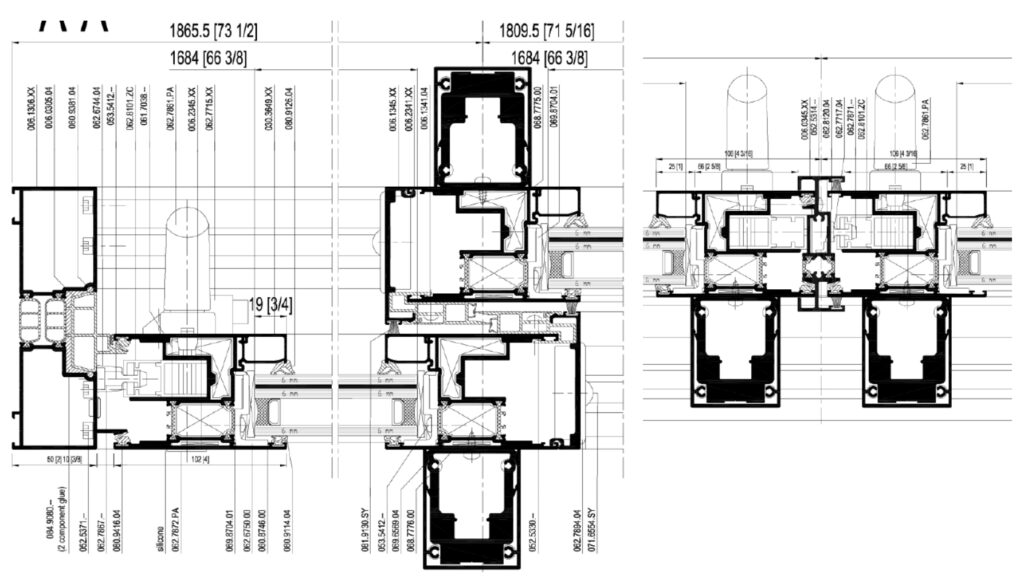

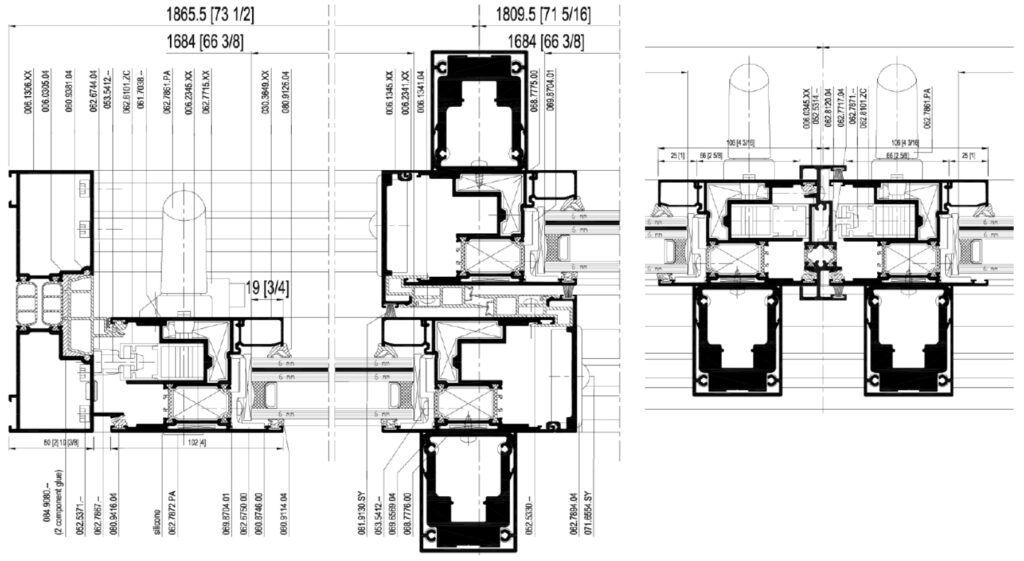

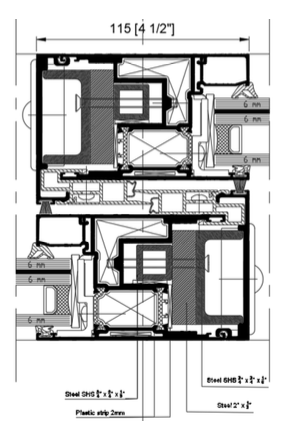

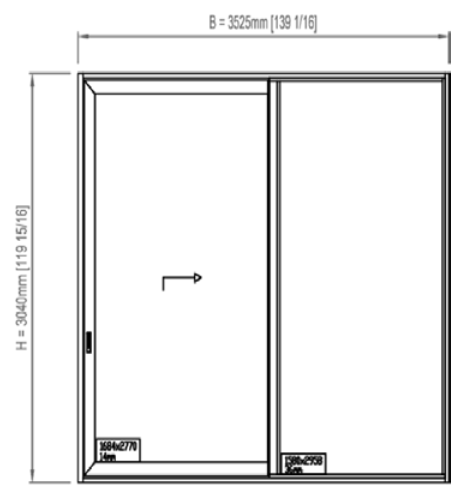

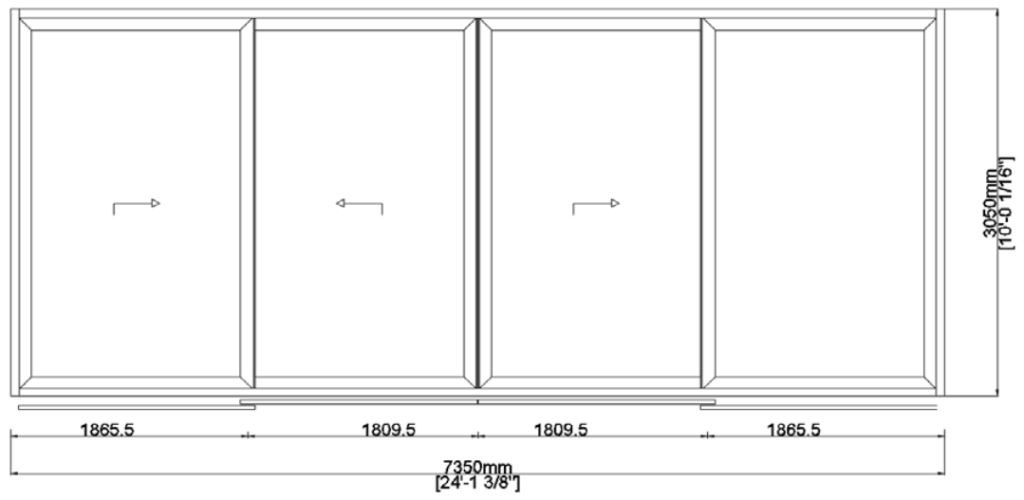

CP155LS - Hurricane

4’ x 8’ [1220mm x 2450mm] fixed & operable [inswing & outswing], as well as 94½” x 141¾” [2400mm x 3600mm] fixed.
Multirail
Monorail
Standard Threshold
Based on testing completed, we should be able to certify 1.5 times larger, therefore qualifying the following configurations containing up to max 6 leafs – [Max Leaf Width = 73 ⅜” & Max Frame Height = 10’]
  • QX & XQ & XX on 2 rail
  • QXXQ & XXXX on 2 rail [bi-parting]
  • QXX & XXQ & XXX on 3 rail
  • QXXXXQ & XXXXXX on 3 rail [bi-parting]
  • QXXX & XXXX on 4 rail
  • QXXXX & XXXXX on 5 rail
  • QXXXXX & XXXXXX on 6 rail
  • QX monorail
  • QXXQ monorail [bi-parting]
  • As well as any other combination of above
Tested to TAS 201, 202 & 203

Water pressure: 12 psf (580Pa) [Monorail & 2 Rail]

Water pressure: 9.8 psf (470Pa) [3 Rail & above]

Design pressure: 65 psf (3120 Pa)

Structural pressure: 98 psf (4680 Pa)

Missile: Large missile D

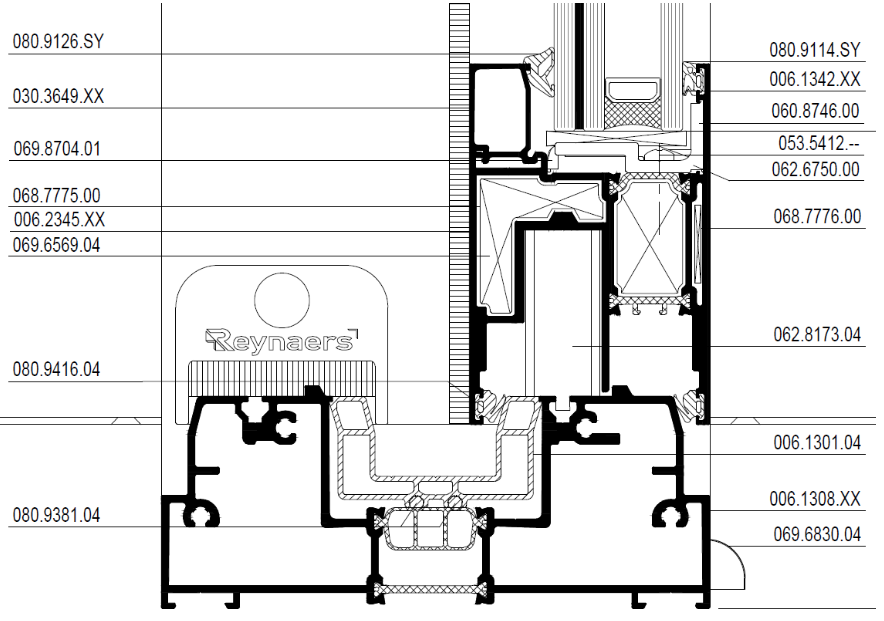

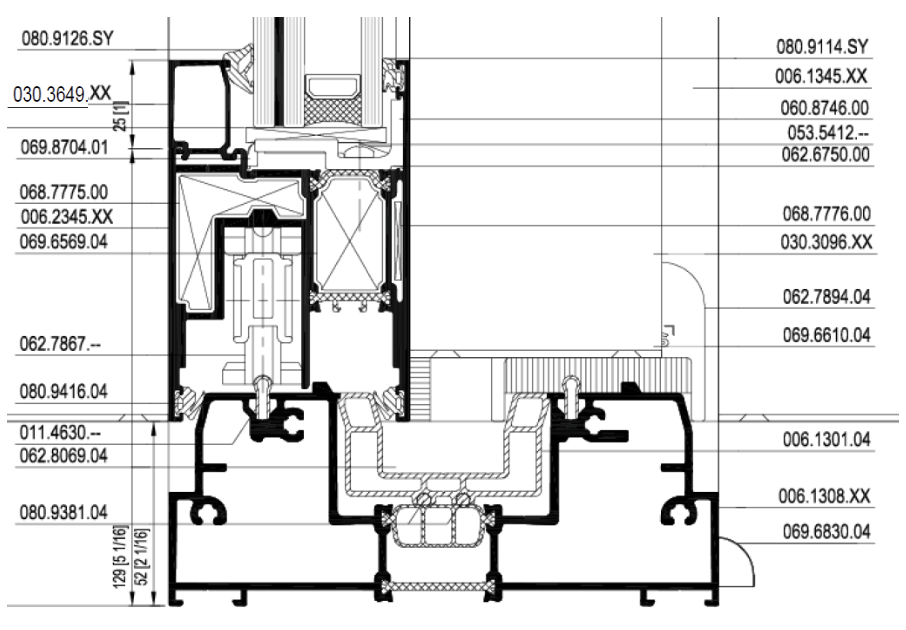

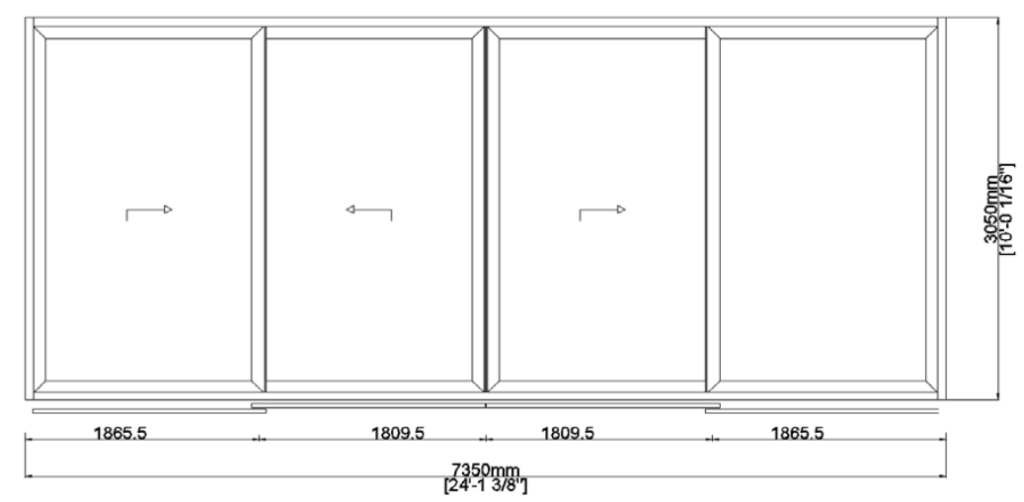

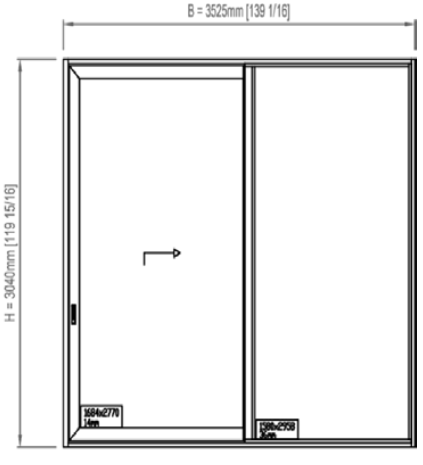

CP155LS – HVHZ Approved

4’ x 8’ [1220mm x 2450mm] fixed & operable [inswing & outswing], as well as 94½” x 141¾” [2400mm x 3600mm] fixed.
Multirail
Monorail
Standard Threshold
Glass Options
Double - ¼” HS exterior- 5/8” cavity - ¼”/090SGP/¼” HS Single - ¼”/090SGP/¼” HS
Based on testing completed, the system is approved for doors 1.5 times larger than tested, therefore qualifying configurations containing up to max 6 leafs
[Max DLO = 64 7/8” x 107 5/8”] [Max Frame Area = 373.16 sq ft]
Optional internal steel reinforcement approved

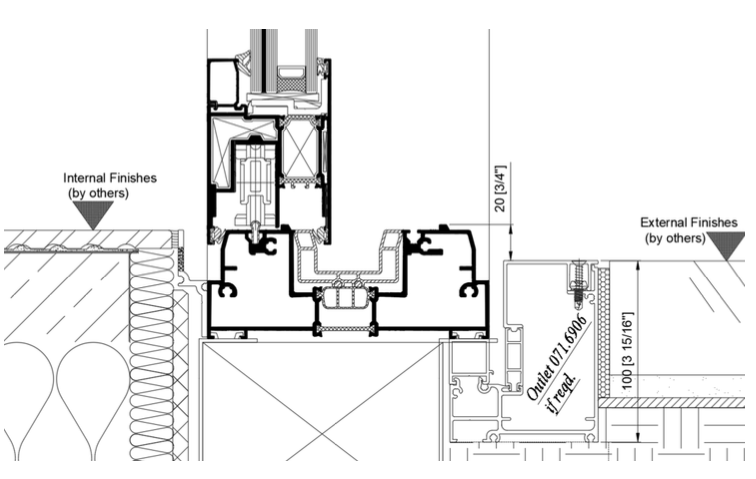

Optional ADA threshold installation solution approved
Height from outside to inside ≤ ¾”
Tested to TAS 201, 202 & 203

Water pressure: 12 psf (580Pa) [Monorail & 2 Rail]

Water pressure: 9.8 psf (470Pa) [3 Rail & above]

Design pressure: 65 psf (3120 Pa)

Structural pressure: 98 psf (4680 Pa)

Missile: Large missile D

Impact Glass Specifications - HVHZ

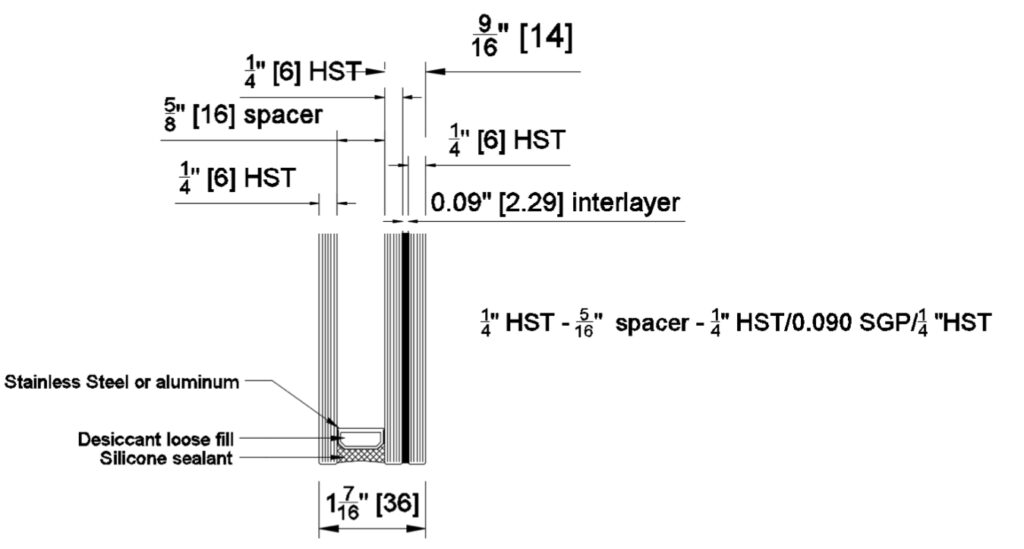

4’ x 8’ windows

Laminated heat strengthened glass with SGP interlayer



Double Glazed – ¼” Heat Strengthened or tempered exterior – 5/8” cavity – ¼”/090/¼” Heat Strengthened interior


6’ x 10’ Lift Slide Doors

Laminated heat strengthened glass with SGP interlayer



Double Glazed – ¼” Heat Strengthened or tempered exterior – 5/8” cavity – ¼”/090/¼” Heat Strengthened interior

Single Glazed – ¼”/090/¼” Heat Strengthened

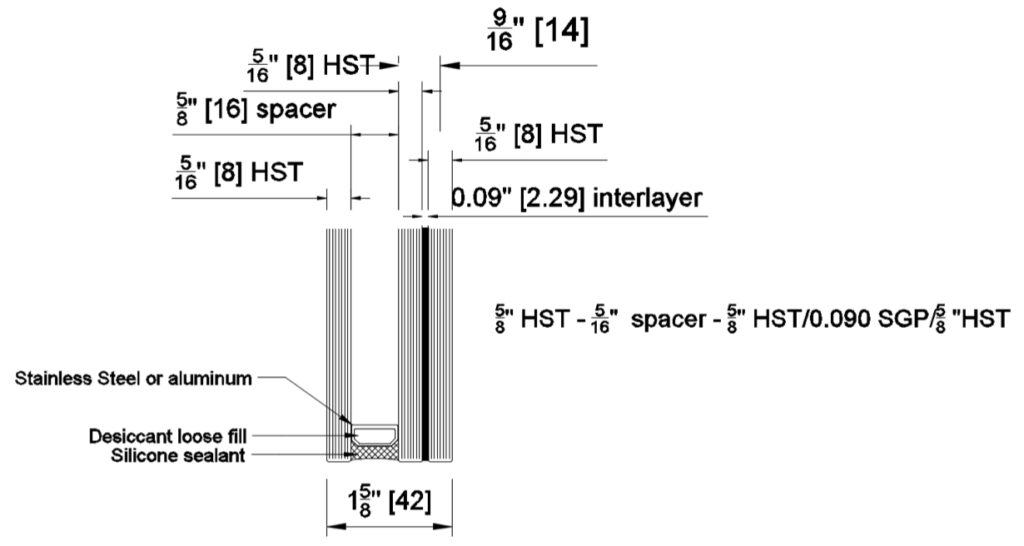

94½” x 141¾” Fixed windows

Laminated heat strengthened glass with SGP interlayer



Double Glazed – 5/16” Heat Strengthened or tempered exterior – 5/8” cavity – 5/16”/090/5/16” Heat Strengthened interior
